1. Index Rollover

UTMStack’s Index Rollover feature ensures optimal data management by automatically deleting indices once they meet specific conditions, such as data size or age.

​

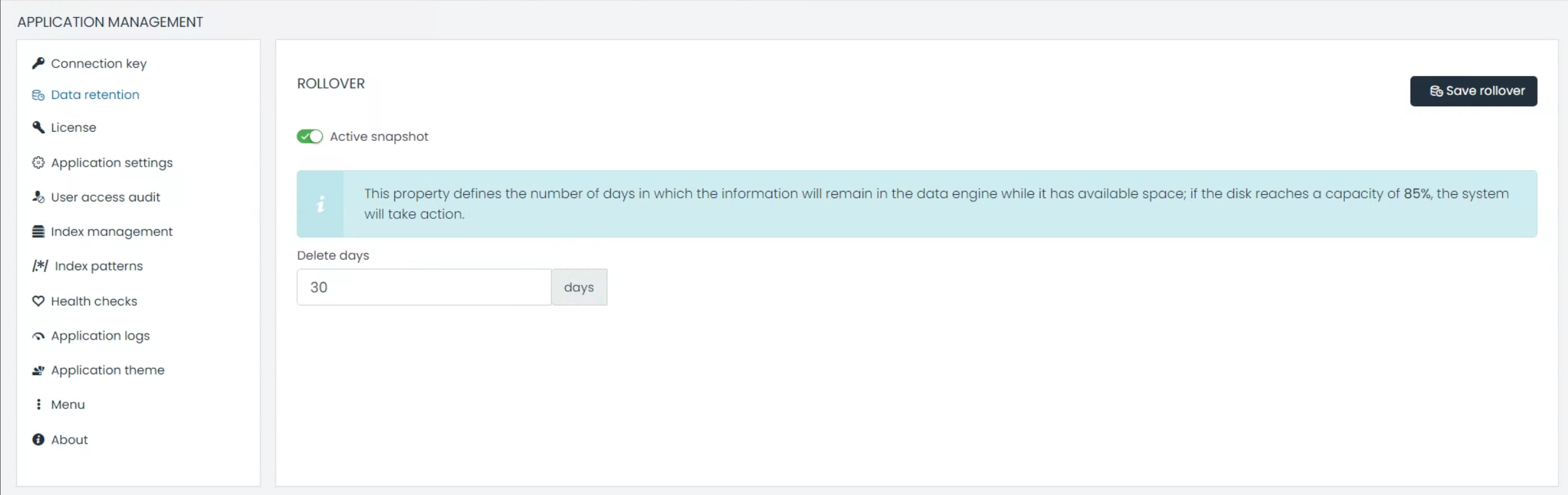

How to Configure Index Rollover:

  1. Go to Application Management > Data Retention.
  2. Set the desired retention period in days.
  3. Click ‘Save’ to confirm your changes.
Key Features:
  • Delete Days: This allows you to define how long the data will be kept. After this period, data is flagged for deletion, which can help in optimizing space and maintaining system performance.
Note: The system automatically takes action when the disk usage reaches 85%, ensuring it doesn’t affect system performance.

​
2. Snapshot Archiving

​
Understanding Hot and Cold Storage:

  • Hot Storage: This is where actively accessed data resides. It’s designed for real-time access, ensuring swift operations.
  • Cold Storage: This storage type is meant for archived data. While not regularly accessed, this data is critical for audits, compliance, or retrospective analysis.
Snapshot Archiving is an essential feature for safeguarding data over extended periods. Even as indices are removed based on retention settings, snapshots ensure that a record of this data is retained.

​
Configuring Snapshot Path in Linux:

Snapshots are automatically saved to /utmstack/opensearch/backups. To redirect these snapshots to another drive or remote location:
  1. Mount the Remote Drive or Different Drive:
sudo mount -t nfs REMOTE-SERVER:/remote/path /utmstack/opensearch/backups
Ensure to replace REMOTE-SERVER:/remote/path with your actual server and path details.
  1. Add to /etc/fstab for Persistence: Add the mount details to /etc/fstab to ensure the remote drive remains mounted after system reboots.
  2. Test the Configuration Ensure that the mount works as expected.
sudo mount -a

​
3. Restoring Data Using Cerebro:

To allow Cerebro to communicate with OpenSearch during the restoration process, you must open the port. Use the following commands to open and close the port securely: Open port 9200:
docker service update --publish-add 9200:9200 utmstack_node1
Once the restoration is complete, immediately close the port to minimize security risks:
docker service update --publish-rm 9200:9200 utmstack_node1
Leaving the port open exposes your OpenSearch data to potential risks. Ensure you close the port after completing the restoration process.
While UTMStack doesn’t include Cerebro, the tool is crucial for snapshot management and restoration, enabling the transition of data from cold to hot storage.

​
Working with Cerebro:

  1. Installation & Access:
  2. Restoration Process:

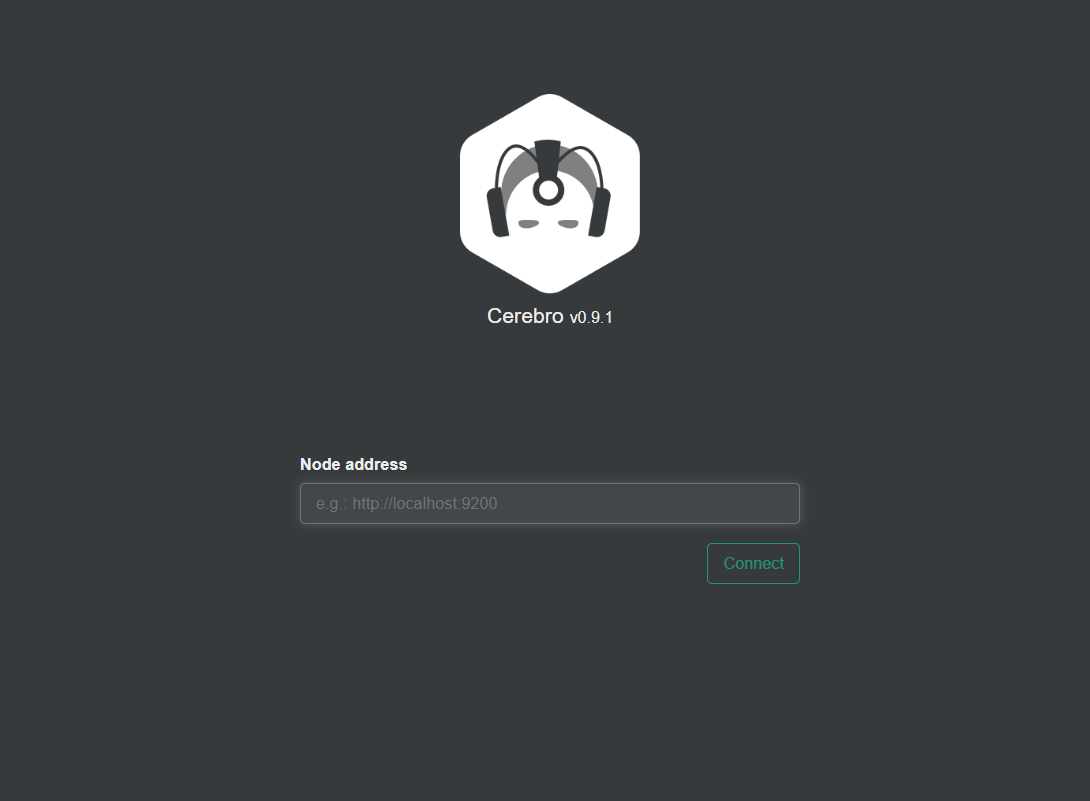

    Link Cerebro with your opensearch node for seamless data restoration
    Data Sources Overview

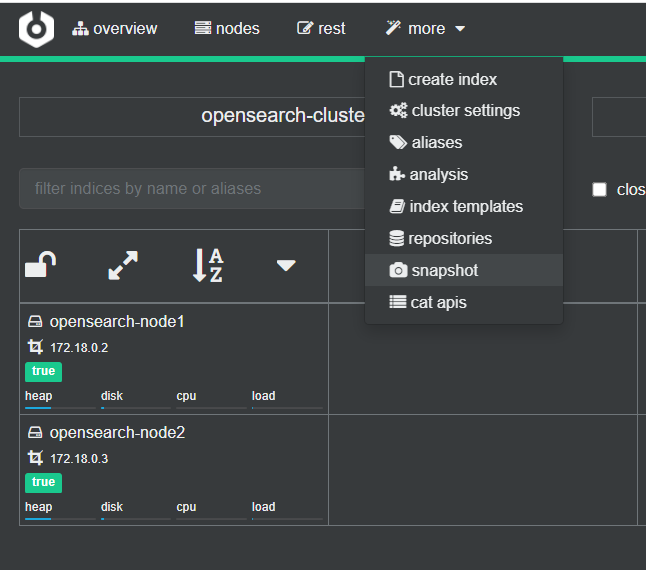

    In the more dropdown menu, select “snapshot”
    Data Sources Overview
    in the snapshot view select a repository to restore the backup.
