Adding Custom Filters to Data Sources

This guide explains how to add custom filters to data sources that send logs via syslog or other methods, especially when they aren’t covered in the standard integration documentation.

Custom filters allow you to parse, transform, and normalize logs from any data source, making them compatible with UTMStack’s correlation engine and analytics.

When to Use Custom Filters

Use custom filters when:

Your data source sends logs via syslog but doesn’t have a dedicated integration guide
You need to parse custom log formats
Standard filters don’t extract all the fields you need
You’re integrating a proprietary or uncommon system
You need to transform data before it reaches the correlation engine

Custom filters follow the same YAML-based format as standard filters. Review the Implementing Filters guide for syntax details.

Prerequisites

Before creating custom filters:

Configure Data Source

Ensure your data source is sending logs to UTMStack via:

7014 TCP
7014 UDP

Understand Log Format

Collect sample logs from your data source to understand:

Log structure (JSON, key-value, plain text)
Field names and values
Timestamp format
Important fields to extract

Review Filter Types

Familiarize yourself with available filter step types:

json - Parse JSON logs
grok - Parse unstructured text with patterns
kv (key-value) - Parse key=value format
cast - Convert field types
rename - Rename fields
Others covered in the filter documentation

Step-by-Step: Creating a Custom Filter

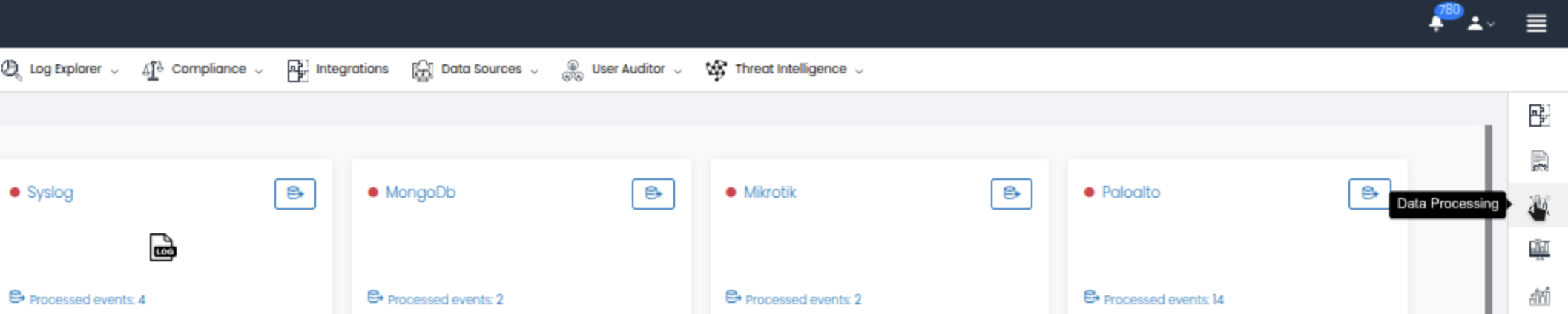

Step 1: Open Data Processing

Navigate to Data Processing

From the UTMStack main interface, locate the Data Processing option in the right sidebar menu.

Click on Data Processing to open the data sources management page.

The Data Processing page displays all configured data sources with:

Data source name (e.g., Syslog, MongoDB, Mikrotik, Paloalto)
Status indicator (red dot = down, green = active)
Processed events count - Number of logs processed

Step 2: Select Your Data Source

Choose the Data Source

Locate the data source you want to add a custom filter to. Common sources include:

Syslog - Generic syslog receiver
Windows agent - Windows event logs
JSON input - Generic JSON receiver
Any other configured source

Click the Pipeline Button

Click the pipeline button (📋) next to your data source to open the pipeline editor.A modal will appear showing the Pipeline [Source] detail.

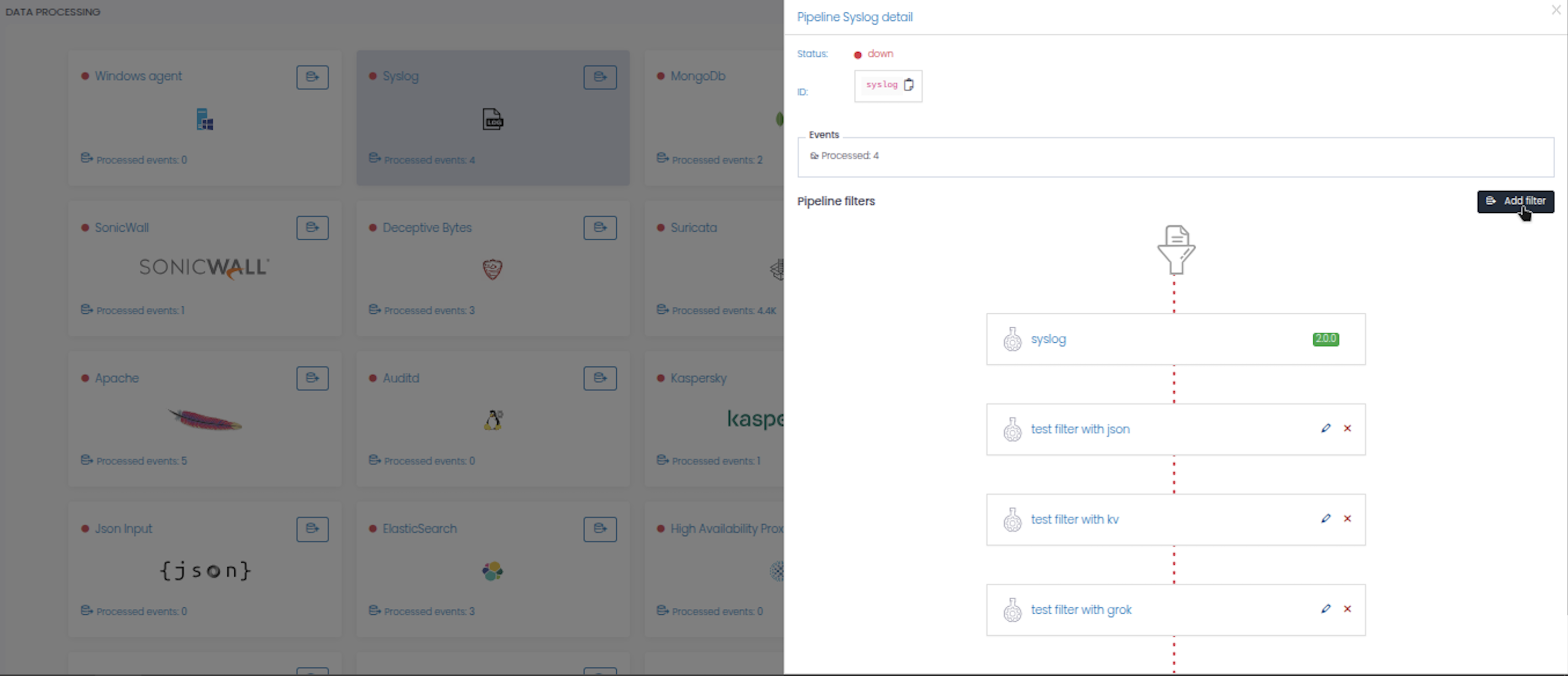

Step 3: View Current Pipeline

The pipeline detail modal displays:

Information shown:

Status: Current state (up/down) with status indicator
ID: Unique identifier for the data source
Events: Number of processed events
Pipeline filters: List of existing filters in the processing pipeline

Pipeline Filters Section:

Shows filters in order of execution (top to bottom)
Each filter card displays:
- Filter icon
- Filter name
- Status badge (e.g., “FAIL” in red, “PASS” in green)
- Edit button (✏️)
- Delete button (✖)
Filters are connected by dotted lines showing data flow

Step 4: Add New Filter

Click Add Filter

In the Pipeline filters section, click the Add filter button in the top right corner.

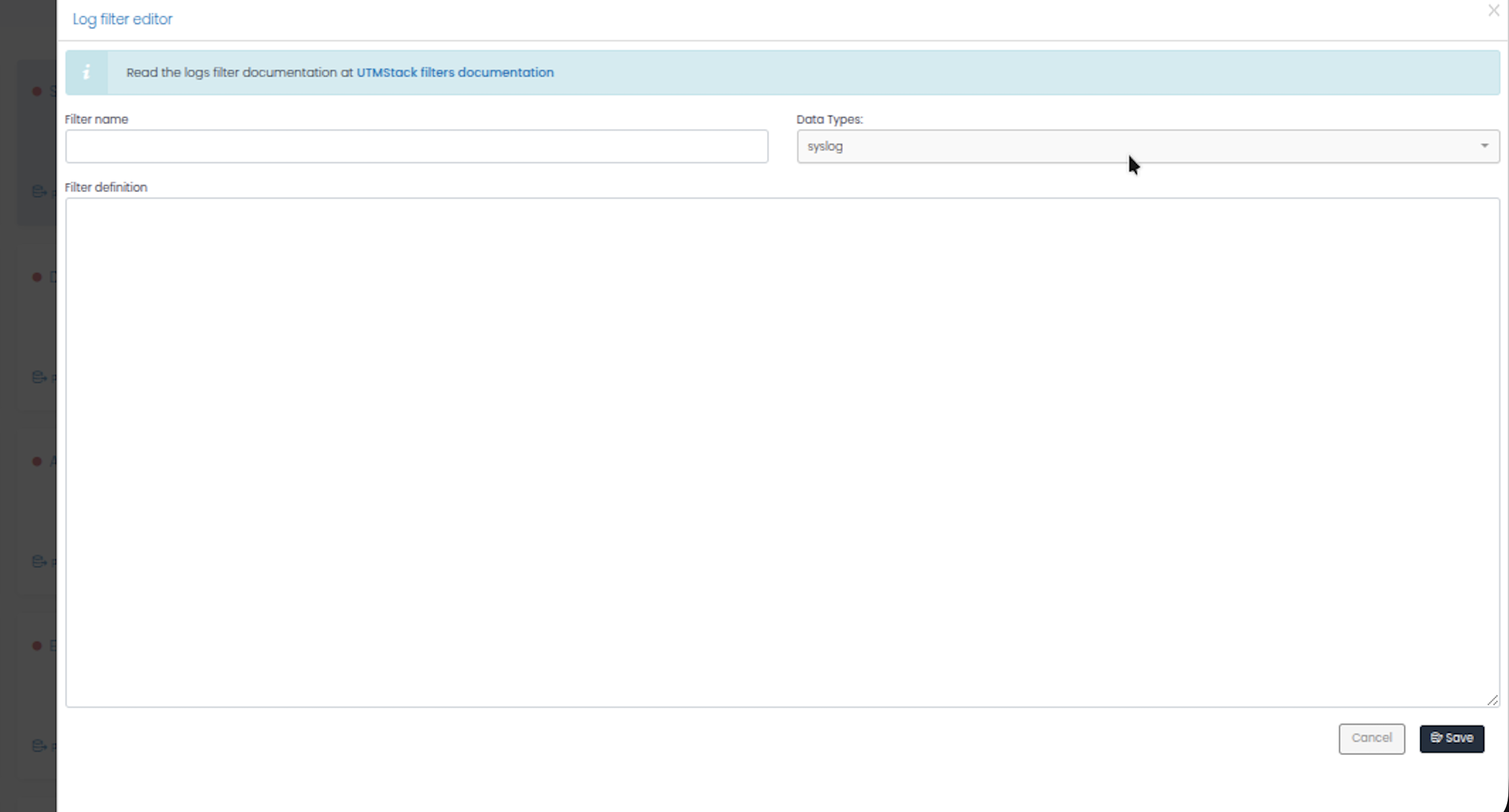

Open Log Filter Editor

The Log filter editor modal will appear with:

Fields:

Information banner: Link to filter documentation at “UTMStack filters documentation”
Filter name: Text field for naming your filter
Data Types: Dropdown menu to select the log type (e.g., syslog, json, etc.)
Filter definition: Large text area for writing the YAML filter definition
Cancel and Save buttons

Step 5: Write Your Custom Filter

Now you’ll write the filter definition using YAML syntax.

You can write and test your filter locally in a text editor, then copy and paste it into the Filter definition field.

Filter Structure

The complete filter structure includes the pipeline wrapper, dataTypes, and steps:

pipeline:
  - dataTypes:
      - syslog      # Specify the data type(s) this filter applies to
    steps:
      - [filter-step-type]:
          # Configuration for this step
      - [next-filter-step]:
          # Configuration for next step

dataTypes: Array of data types this filter processes (e.g., syslog, json, windows)
steps: Array of filter operations to perform in sequence

Example 1: Analyze JSON system logs

pipeline:
  - dataTypes:
      - syslog
    steps:
      # Step 1: Parse the JSON content
      - json:
          source: message

      # Step 2: Extract timestamp
      - reformat:
          field: parsed.timestamp
          function: 'time'
          fromFormat: '2006-01-02T15:04:05Z07:00'
          toFormat: '2024-09-29T18:40:53 +0000'

      # Step 3: Rename fields to standard names
      - rename:
          fields:
            - from: parsed.src_ip
              to: source.ip
            - from: parsed.dst_ip
              to: destination.ip
            - from: parsed.username
              to: user.name

      # Step 4: Add source type tag
      - add:
          function: 'string'
          params:
            key: log.source.type
            value: 'my-custom-source'

Example 2: Analyze key-value system records

pipeline:
  - dataTypes:
      - syslog
    steps:
      # Step 1: Parse key-value pairs
       - kv:
          fieldSplit: " "
          valueSplit: "="
          source: message

      # Step 2: Cast fields to correct types
      - cast:
          field:
            - origin.port
          to: int

      # Step 3: Normalize IP addresses
      - rename:
          fields:
            - from: parsed.src
              to: source.ip
            - from: parsed.dst
              to: destination.ip

Example 3: Complex multi-step filter

pipeline:
  - dataTypes:
      - syslog
    steps:
      # Step 1: Extract the main log body from syslog wrapper
      - grok:
          patterns:
            - fieldName: syslog_parsed
              pattern: "%{SYSLOGTIMESTAMP:syslog_timestamp} %{HOSTNAME:syslog_hostname} %{GREEDYDATA:log_message}"
          source: message

      # Step 2: Parse the actual log message as JSON
      - json:
          source: syslog_parsed.log_message

      # Step 3: Normalize fields
      - rename:
          fields:
            - from: parsed.sourceAddress
              to: source.ip
            - from: parsed.destinationAddress
              to: destination.ip
            - from: parsed.protocol
              to: network.transport

      # Step 4: Convert field types
      - cast:
          fields:
            - parsed.bytes_sent
          to: int

      # Step 5: Add ECS-compliant fields
      - add:
          function: 'string'
          params:
            key: event.category
            value: 'network'
      - add:
          function: 'string'
          params:
            key: event.type
            value: 'connection'
      - add:
          function: 'string'
          params:
            key: log.source.type
            value: 'custom-firewall'

      # Step 6: Adding geolocation
      - dynamic:
          plugin: com.utmstack.geolocation
          params:
            source: origin.ip
            destination: origin.geolocation
          where: exists("origin.ip")

Example 4: Common filter patterns - Cisco ASA Syslog

pipeline:
  - dataTypes:
      - firewall-cisco-asa
    steps:
      - grok:
          patterns:
            - fieldName: log.syslogPri
              pattern: '(\<{{.integer}}\>)'
            - fieldName: log.ciscoTime
              pattern: '({{.day}}\s)?{{.monthName}}\s{{.monthDay}}\s{{.year}}\s{{.time}}'
            - fieldName: log.localIp
              pattern: '{{.ipv4}}|{{.ipv6}}|{{.hostname}}'
            - fieldName: log.asaHeader
              pattern: '{{.data}}ASA-'
            - fieldName: log.severity
              pattern: '{{.integer}}'
            - fieldName: log.messageId
              pattern: '-{{.integer}}'
            - fieldName: log.ciscoSeparator
              pattern: '\:{{.space}}'
            - fieldName: log.msg
              pattern: '{{.greedy}}'
          source: raw

      - rename:
          fields:
            - from: cisco.src_ip
              to: source.ip
            - from: cisco.dst_ip
              to: destination.ip
            - from: cisco.src_port
              to: source.port
            - from: cisco.dst_port
              to: destination.port

      - add:
          function: 'string'
          params:
            key: event.module
            value: 'cisco.asa'
      - add:
          function: 'string'
          params:
            key: event.category
            value: 'network'

Filter Best Practices

Use ECS Field Names

Normalize field names to the Elastic Common Schema (ECS) standard:Network Fields:

source.ip, destination.ip
source.port, destination.port
network.bytes, network.packets
network.transport (tcp, udp, icmp)

User Fields:

user.name, user.domain
user.email

Event Fields:

event.category (network, authentication, file, etc.)
event.type (start, end, denied, allowed)
event.outcome (success, failure)

Process Fields:

process.name, process.pid
process.command_line

This ensures compatibility with UTMStack correlation rules and dashboards.

Handle Parsing Errors Gracefully

Always account for logs that might not match your pattern:

- json:
    source: message
    target: parsed
    on_error: skip  # Don't fail entire pipeline if JSON is invalid

- grok:
    source: message
    pattern: "%{PATTERN}"
    on_error: drop  # Drop logs that don't match pattern

Options:

skip - Continue processing without this step
drop - Discard the log entirely
log - Log the error but continue

Test with Real Logs

Before deploying filters to production:

Collect real log samples from your data source
Test filter against various log formats and edge cases
Check for logs with:
- Missing fields
- Different timestamp formats
- Special characters
- Unexpected values
Verify performance with high log volumes

Use Conditions for Complex Logic

Handle different log formats from the same source:

- condition:
    if: 'contains(message, "JSON")'
    then:
      - json:
          source: message
          target: parsed
    else:
      - kv:
          source: message
          target: parsed

Add Source Identification

Always tag logs with their source for easier filtering:

- add:
    function: 'string'
    params:
      key: log.source.type
      value: 'custom-firewall'
- add:
    function: 'string'
    params:
      key: log.source.vendor
      value: 'acme-corp'
- add:
    function: 'string'
    params:
      key: event.module
      value: 'firewall'

Preserve Original Message

Keep the original log message for troubleshooting:

- rename:
    fields:
      - from: message
        to: original_message

Or use a dedicated field:

- add:
    function: 'string'
    params:
      key: log.original
      value: '{{message}}'

Troubleshooting

Filter shows FAIL status

Cause: Syntax error or invalid YAMLSolution:

Click the edit button (✏️) to reopen the filter
Check YAML syntax:
- Proper indentation (2 spaces)
- Correct field names
- Valid filter step types
Validate against the filter documentation
Test with a simple filter first, then add complexity

No events being processed

Possible Causes:

Data source not sending logs
Firewall blocking syslog port
Wrong port configuration
Filter dropping all logs

Solution:

Verify data source is sending logs:
```
tcpdump -i any port 514
```
Check firewall rules allow syslog traffic

Test with netcat:

echo "test message" | nc -u utmstack-ip 514

Temporarily remove filters to see if logs arrive

Fields not extracted correctly

Solution:

Review sample logs to verify format matches your pattern
Use simpler patterns first, then refine
Test grok patterns at https://grokdebugger.com
Check for special characters that need escaping
Verify source field name in each filter step

Performance issues / slow processing

Causes:

Complex regex patterns
Too many filter steps
Inefficient grok patterns

Solution:

Simplify grok patterns - use specific patterns instead of GREEDYDATA
Combine multiple rename operations into one step
Remove unnecessary processing steps
Consider using json parsing instead of grok when possible
Add conditions to skip unnecessary processing

Timestamps incorrect or missing

Solution:

Verify the timestamp format string matches your logs exactly
Common Go time formats:
- ISO8601: 2006-01-02T15:04:05Z07:00
- RFC3339: 2006-01-02T15:04:05Z07:00
- Custom: 2006-01-02 15:04:05
Ensure timezone is included or use UTC

Reformat timestamp explicitly:

- reformat:
    field: parsed.time
    function: 'time'
    fromFormat: '2006-01-02 15:04:05'
    toFormat: '2024-09-29T18:40:53 +0000'

Testing Your Filter

Method 1: Use Log Explorer

Go to Log Explorer in UTMStack
Filter by your data source: log.source.type: "your-source"
Examine a few logs to verify:
- All expected fields are present
- Values are correct
- Types are appropriate (numbers not strings)
- Timestamps are accurate

Method 2: Export and Inspect

In Data Processing, click the export button for your source
Review the filter configuration
Validate YAML syntax with an online validator

Method 3: Check Pipeline Status

Monitor the pipeline detail modal
Look for filter status indicators
Check processed event counts increase
Watch for error messages

Advanced Topics

Using Go Modules in Filters

Some filter types support Go module functions:

pipeline:
  - dataTypes:
      - syslog
    steps:
      - script:
          lang: go
          source: |
            // Custom Go code for complex transformations
            if strings.Contains(message, "ERROR") {
              severity = "high"
            }

See the Implementing Filters guide for Go module references.

Conditional Processing

pipeline:
  - dataTypes:
      - syslog
    steps:
      - condition:
          if: 'log.level == "ERROR"'
          then:
            - add:
                function: 'integer'
                params:
                  key: event.severity
                  value: 3
          else:
            - add:
                function: 'integer'
                params:
                  key: event.severity
                  value: 1

Multi-Source Pipelines

For sources receiving multiple log formats:

pipeline:
  - dataTypes:
      - syslog
    steps:
      # Try JSON first
      - json:
          source: message
          target: parsed
          on_error: skip

      # If JSON failed, try key-value
      - condition:
          if: "!has(parsed)"
          then:
            - kv:
                source: message
                target: parsed

      # If both failed, use grok
      - condition:
          if: "!has(parsed)"
          then:
            - grok:
                source: message
                pattern: "%{GREEDYDATA:parsed.message}"

For assistance with custom filters, consult the UTMStack community or contact support at [email protected]

Getting Started

Installation

Rules and Filters

When to Use Custom Filters

Prerequisites

Step-by-Step: Creating a Custom Filter

Step 1: Open Data Processing

Step 2: Select Your Data Source

Step 3: View Current Pipeline

Step 4: Add New Filter

Step 5: Write Your Custom Filter

Filter Structure

Example 1: Analyze JSON system logs

Example 2: Analyze key-value system records

Example 3: Complex multi-step filter

Example 4: Common filter patterns - Cisco ASA Syslog

Filter Best Practices

Troubleshooting

Testing Your Filter

Method 1: Use Log Explorer

Method 2: Export and Inspect

Method 3: Check Pipeline Status

Advanced Topics

Using Go Modules in Filters

Conditional Processing

Multi-Source Pipelines

Next Steps

Implementing Filters

Implementing Rules

Getting Started

Installation

Rules and Filters

​When to Use Custom Filters

​Prerequisites

​Step-by-Step: Creating a Custom Filter

​Step 1: Open Data Processing

​Step 2: Select Your Data Source

​Step 3: View Current Pipeline

​Step 4: Add New Filter

​Step 5: Write Your Custom Filter

​Filter Structure

​Example 1: Analyze JSON system logs

​Example 2: Analyze key-value system records

​Example 3: Complex multi-step filter

​Example 4: Common filter patterns - Cisco ASA Syslog

​Filter Best Practices

​Troubleshooting

​Testing Your Filter

​Method 1: Use Log Explorer

​Method 2: Export and Inspect

​Method 3: Check Pipeline Status

​Advanced Topics

​Using Go Modules in Filters

​Conditional Processing

​Multi-Source Pipelines

​Next Steps

Implementing Filters

Implementing Rules

When to Use Custom Filters

Prerequisites

Step-by-Step: Creating a Custom Filter

Step 1: Open Data Processing

Step 2: Select Your Data Source

Step 3: View Current Pipeline

Step 4: Add New Filter

Step 5: Write Your Custom Filter

Filter Structure

Example 1: Analyze JSON system logs

Example 2: Analyze key-value system records

Example 3: Complex multi-step filter

Example 4: Common filter patterns - Cisco ASA Syslog

Filter Best Practices

Troubleshooting

Testing Your Filter

Method 1: Use Log Explorer

Method 2: Export and Inspect

Method 3: Check Pipeline Status

Advanced Topics

Using Go Modules in Filters

Conditional Processing

Multi-Source Pipelines

Next Steps
